Russell W. Porter's Drawings of Palomar

The following was written by James S. Fassero, a colleague of Russell W. Porter's at Caltech, and is from the introduction to Fassero's 1947 book of Porter's cutaway drawings Photographic Giants of Palomar.

Russell W. Porter Drawing
Dr. Porter working on one of the Palomar Drawings.
Dr. Porter working on one
of the Palomar Drawings

Dr. Russell W. Porter, well known to amateur telescope makers the world over, made this fine collection of drawings possible by his ability to faithfully portray mechanical objects in perspective. With pencil and paper he was able to "cut away" sections of the telescope to show the inside details; something which cannot be done with a camera. His artistic and mechanical abilities have combined to produce a set of drawings which have proved of indispensable value not only to the laymen but to all those who already are familiar with the instrument. Dr. Porter is shown here working on one of the drawings in this book.

Maxfield Parrish, celebrated fellow artist had this to say of the Porter drawings: "If these drawings had been made from the telescope and its machinery after it had been erected they would have been of exceptional excellence, giving an uncanny sense of reality, with shadows accurately cast and well nigh perfect perspective; but to think that any artist had his pictorial imagination in such working order as to construct these pictures with no other mechanical data than blue prints of plans and elevation of the various intricate forms -- is simply beyond belief."

"These drawings should be in a government museum of standards, in a glass case, along with the platinum pound weight, yard stick, etc., to show the world and what comes after just what a mechanical drawing should be. Not only that, but the rendering is a work of art, exact and life like, and done with delightful freedom of technique."

"I doubt if there are drawings anywhere which can in any way compare with these for perfection in showing what a stupendous piece of machinery is going to look like when finished. Their creation should be world news."

The Springfield Telescope Makers would like to thank Bruce Weertman for providing the images of Russell Porter's drawings. Check out his web page. These images of Russell Porter's drawings are used with permission of Caltech.

Palomar Drwaing

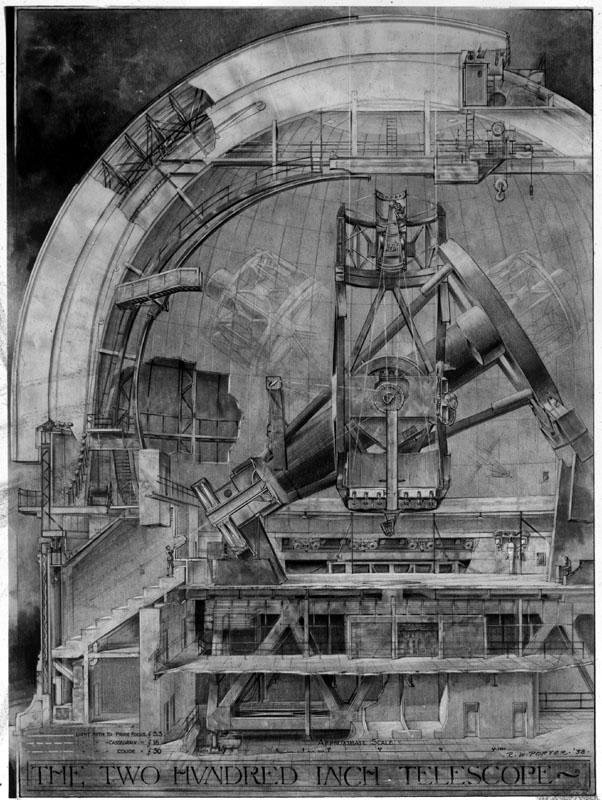

200" Telescope
200" Telescope
Palomar Drwaing

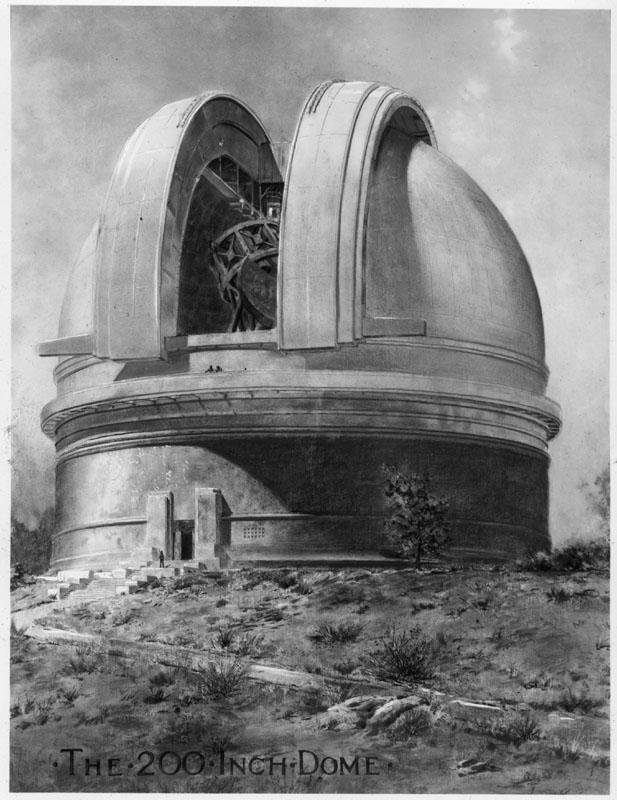

200" Dome
200" Dome
Palomar Drwaing

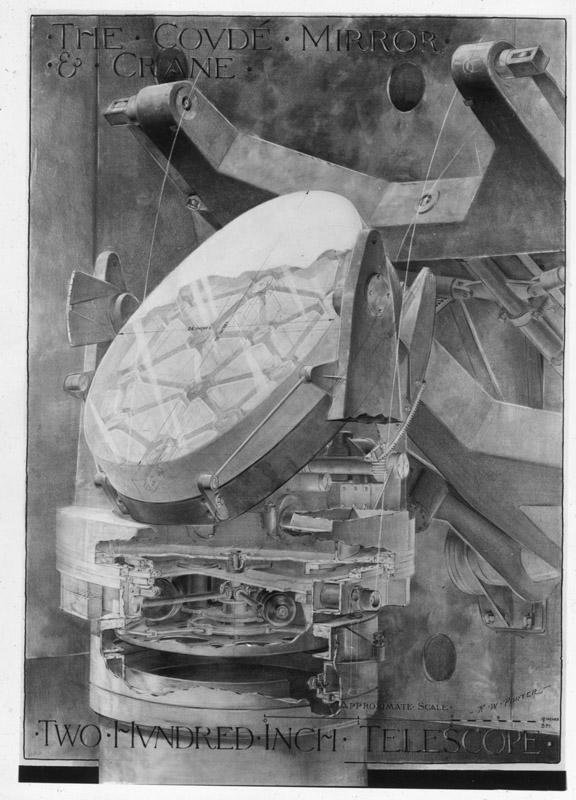

Coude Mirror
Coude Mirror
Palomar Drwaing

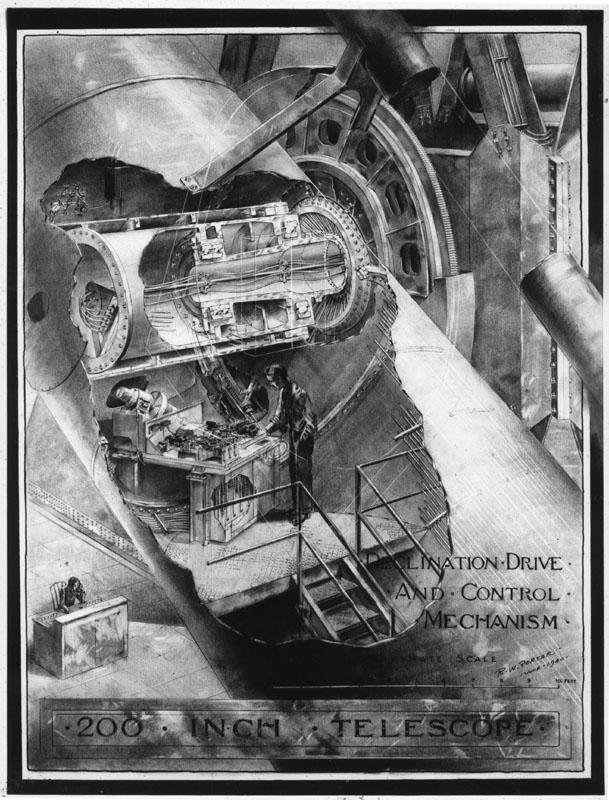

Declination Drive
Declination Drive
Palomar Drwaing

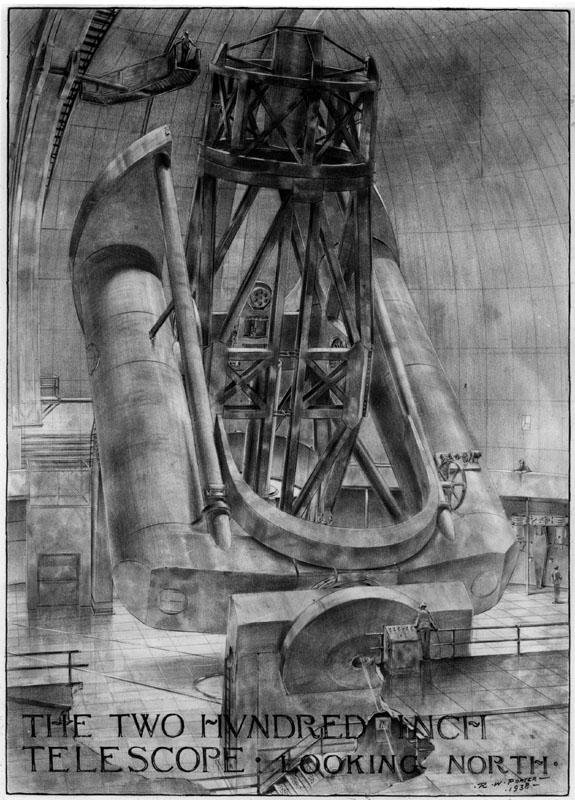

Telescope Looking North
Telescope Looking North
Palomar Drwaing

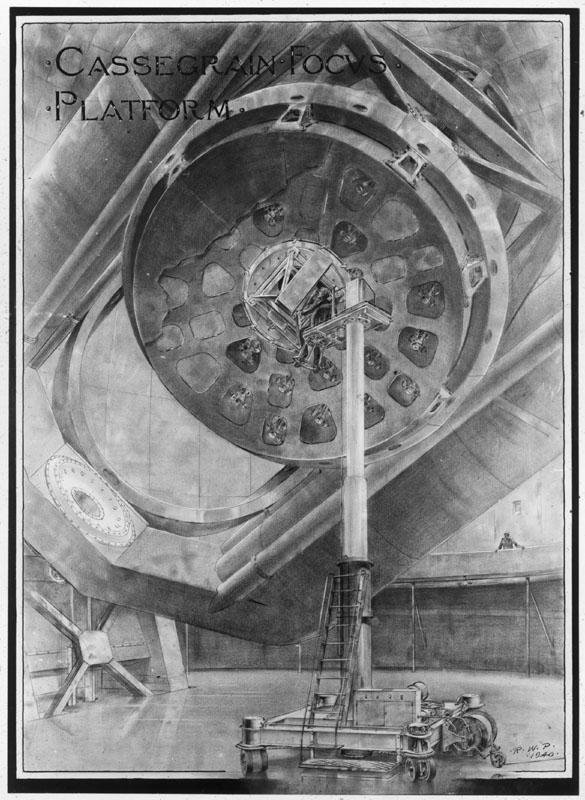

Cassegrain Focus Platform
Cassegrain Focus Platform
Palomar Drwaing

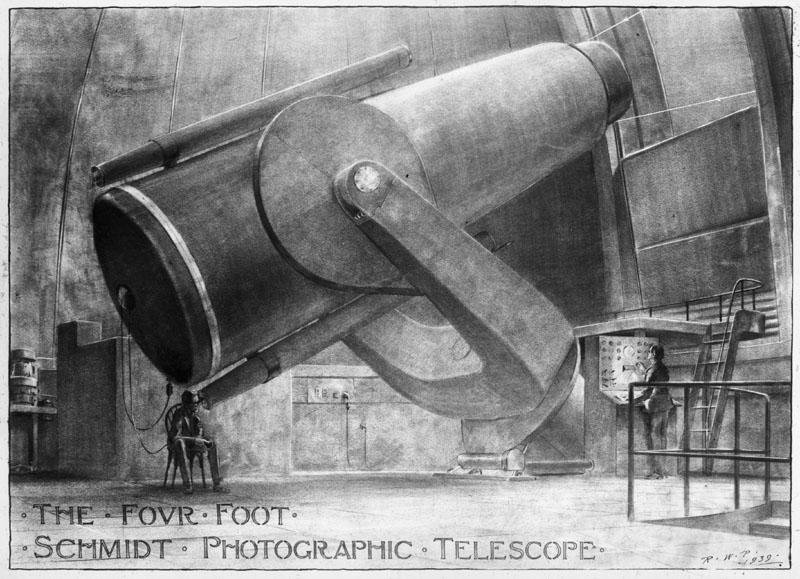

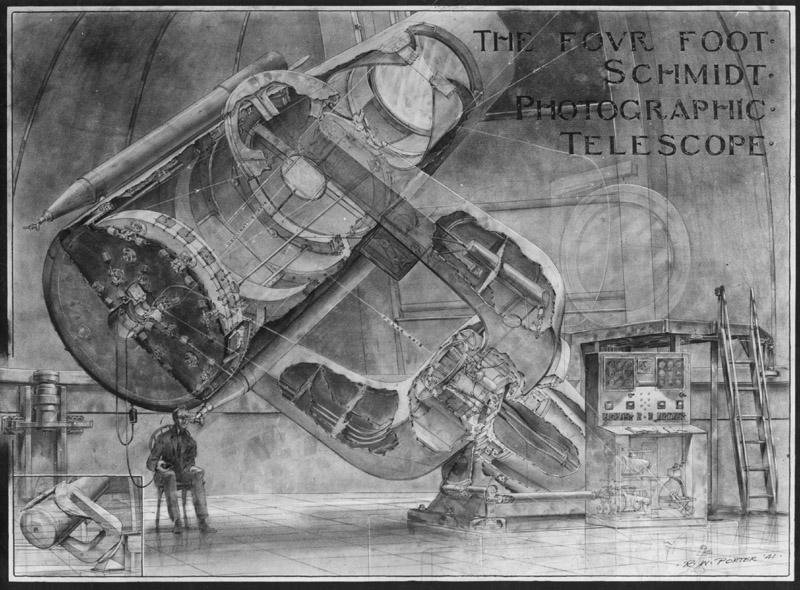

48" Schmidt Telescope
48" Schmidt Telescope
Palomar Drwaing

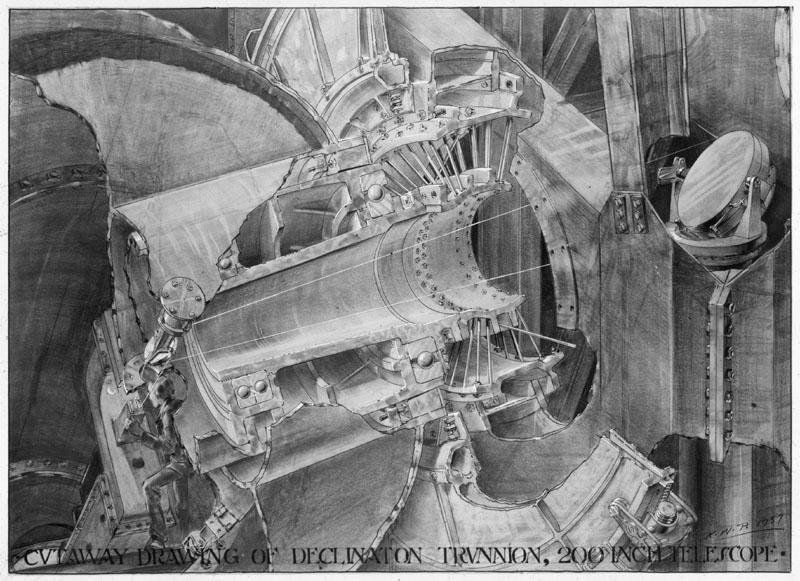

Declination Trunnion
Declination Trunnion
Palomar Drwaing
200" Mirror
200" Mirror
Palomar Drwaing

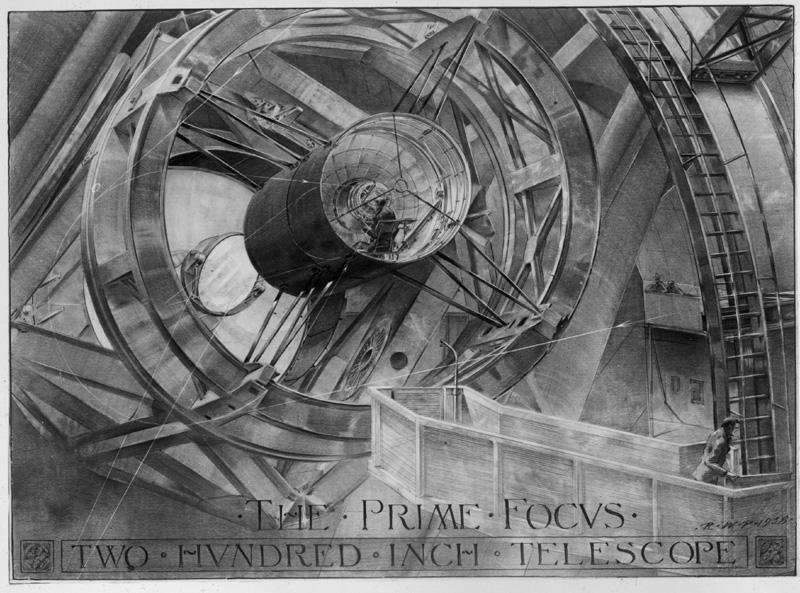

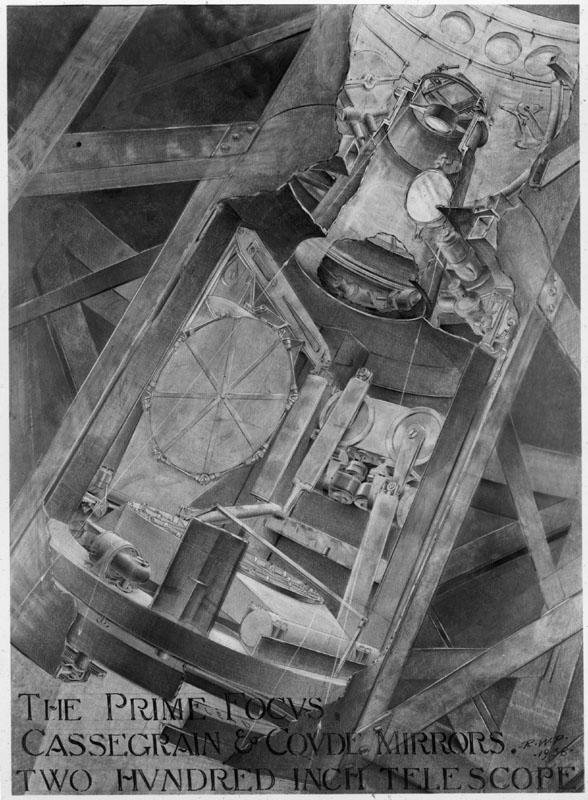

200" Prime Focus
200" Prime Focus
Palomar Drwaing

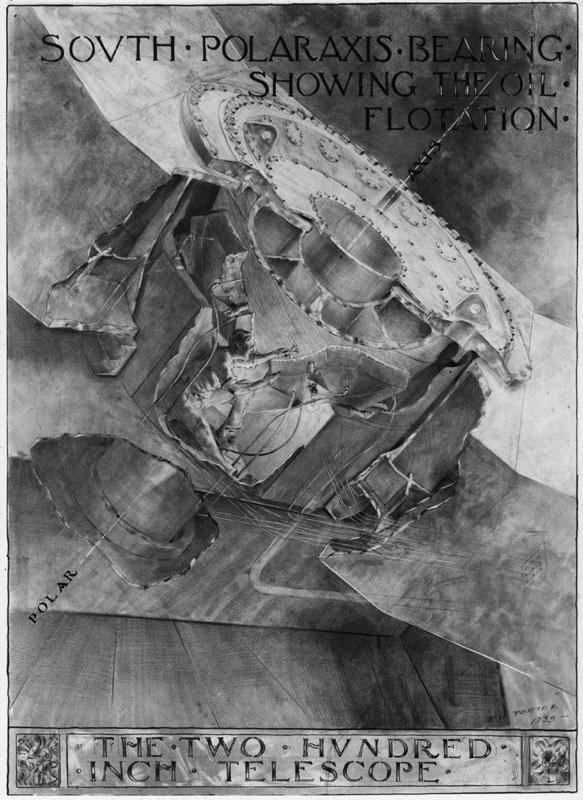

South Polar Axis
South Polar Axis
Palomar Drwaing
48" Schmidt Telescope
48" Schmidt Telescope
Palomar Drwaing

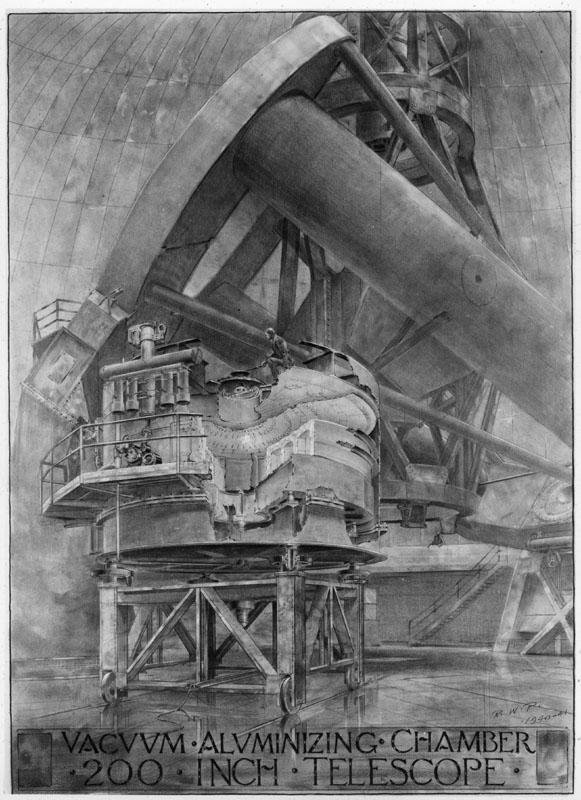

Aluminizing Chamber
Aluminizing Chamber
Palomar Drwaing

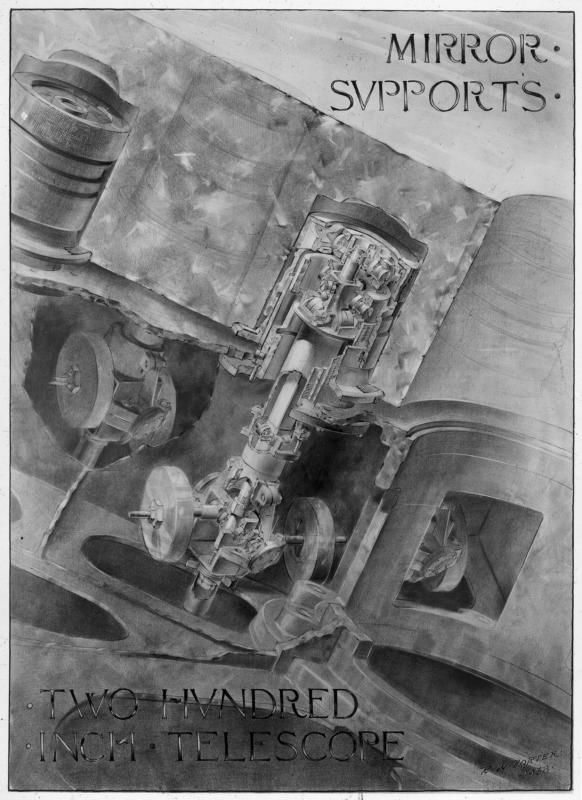

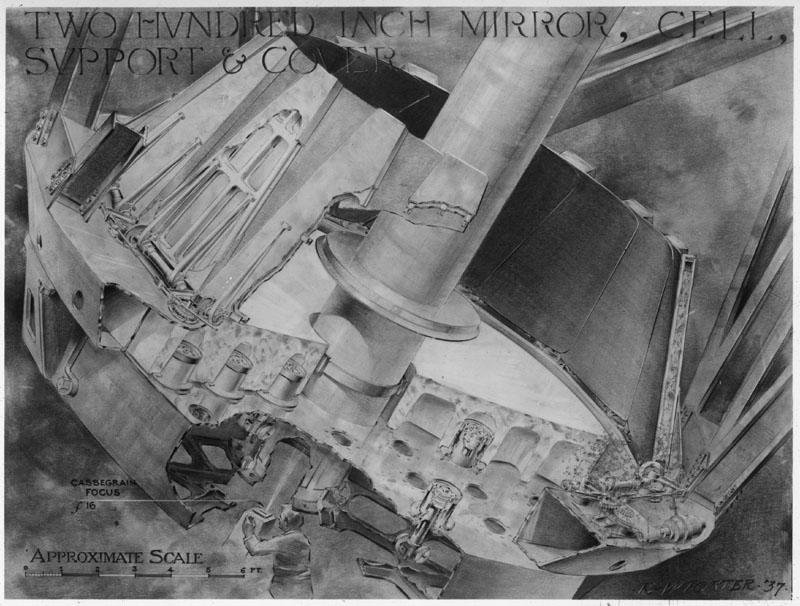

200" Mirror Supports
200" Mirror Supports
Palomar Drwaing
200" Prime Focus
200" Prime Focus
Palomar Drwaing

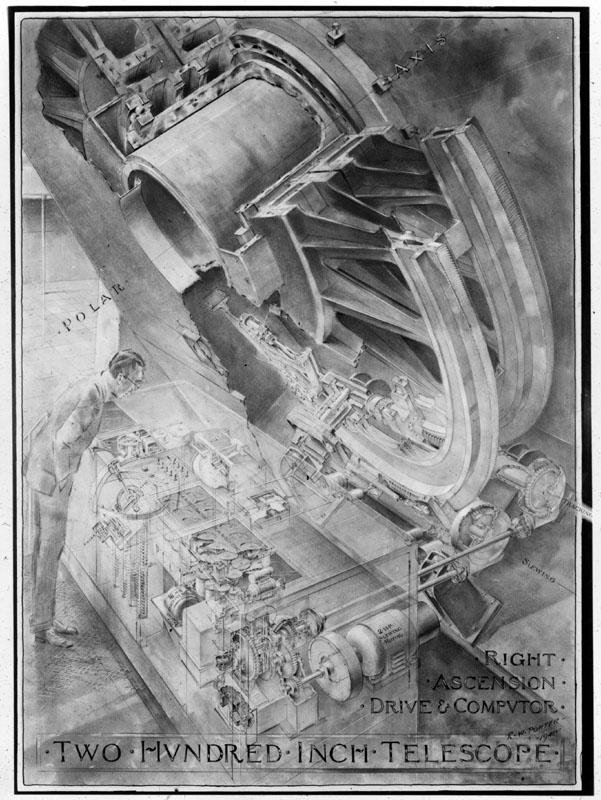

Right Ascension Drive
Right Ascension Drive
Palomar Drwaing

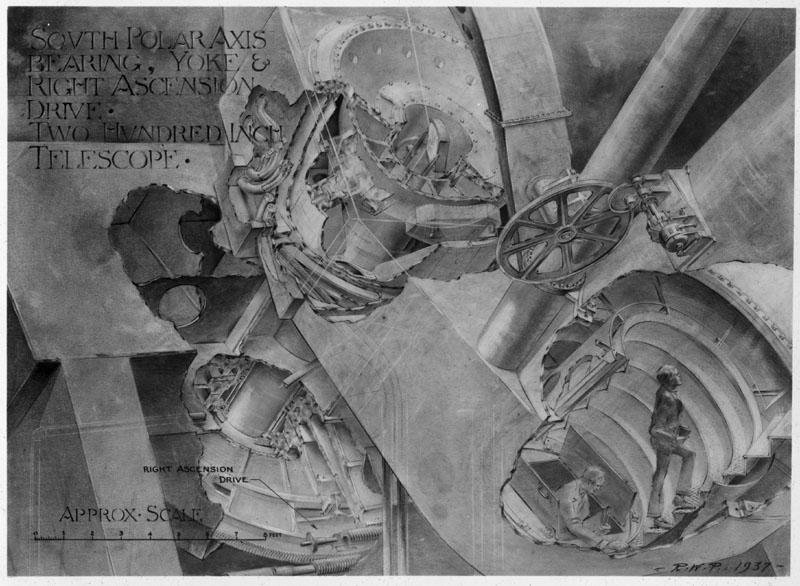

South Polar Axis
South Polar Axis
Palomar Drwaing

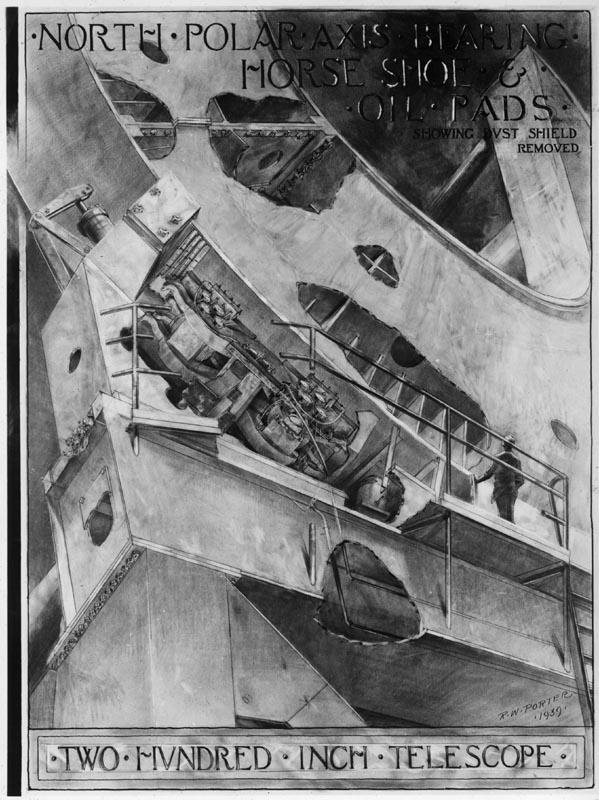

North Polar Axis
